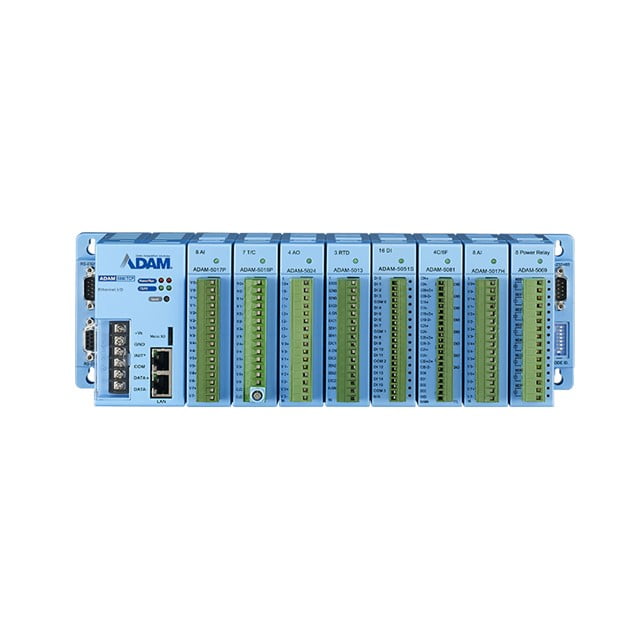

ADVANTECH ADAM CIRCUIT MODULE, 8-slot Distributed DA&C System Based on Ethernet
- ARM 32-bit RISC CPU
- 10/100Base-T auto-negotiation high-speed communication port
- Supports Modbus/TCP for easy integration
- Supports UDP event handling function
- Up to 100 m communication distance w/o repeater
- Allows remote configuration via Ethernet
- Allows concurrent access for 8 host PCs
- 4 I/O slots for up to 64 points and 8 I/O slots for up to 128 points data monitoring and control
Deskripsi
| Category | Attribute | Value |
| General | Connectors | 1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (internal use), 1 x screw terminal for power input, 2 x RJ-45 for LAN |
| General | Humidity (Operating) | 5~95% RH (non-condensing) |
| General | Humidity (Storage) | 5~95% RH (non-condensing) |
| Hardware | Certification | CE, FCC class A |
| Hardware | CPU | Cortex M4 |
| Hardware | Expansion | 8 x I/O Slot |
| Hardware | I/O | 1 x RS-232, 2x RS-485 |
| Hardware | LAN | 2 x 10/100 Mbps |
| Hardware | LED Indicators | Power, RUN, Communications |
| Hardware | Power Input | 10~30 VDC |
| Environment | Operating Temperature | -10~70 °C (14~158 °F) |
| Environment | Storage Temperature | -25~85 °C (-13~185 °F) |
| Mechanical | Dimension (W x H x D) | 355 x 110 x 75 mm |
| Mechanical | Enclosure | PC + ABS |
| Mechanical | Mounting | Wall, DIN-rail |
Datasheet
Informasi Tambahan
| Brand |
Advantech |
|---|
