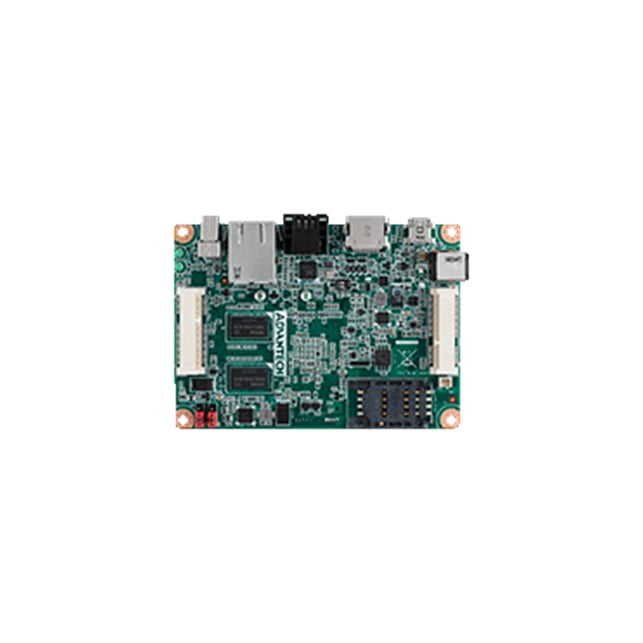

Advantech CIRCUIT BOARD, Freescale i.MX6 Dual Lite 1GHz SBC A101-1 (RSB-3410DL-MDA1E)
Deskripsi
| Category | Attribute | Value |
| Display | Graphic Engine | 1 IPU. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1 |
| Display | H/W Video Codec | Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP, MJPEG BP Encoder: MPEG-4 SP, H.264 BP, H.263, MJPEG BP |
| Display | HDMI | 1920 x 1080 |
| Display | LVDS | 18/24-bit single channel LVDS |
| Form Factor | Form Factor | Pico ITX |
| I/O | Audio | HDMI Audio |
| I/O | PCIe | 2 mini-PCIe |
| I/O | SDIO | 1x SD slot |
| I/O | Serial port | 1x RS232(CTS,RTX,Tx,Rx) |
| I/O | USB | 1 USB 2.0, 1 USB2.0 OTG |
| Memory | Capacity | 1 GB (max. capacity as 2 GB) |
| Memory | Flash | 4 GB eMMC for O.S. and 4 MB NOR Flash for Advantech boot loader |
| Memory | Technology | DDR3 800 |
| Processor | CPU | Freescale i.MX6 Dual Lite 1GHz |
| Operating System | Linux | Linux V3.10.17, Yocto Linux, Android |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) |
| Power | Power Supply Voltage | 12 VDC |
| Ethernet | Chipset | Freescale i.MX6 integrated RGMII |
| Watchdog Timer | WatchDog Timer | Yes |
| Certification | EMC | CE/FCC Class B |
| Physical | Dimension (mm) | 100 x 72 mm (3.9″ x 2.8″) |
| RTC | RTC | Yes |
Informasi Tambahan
| Brand |
Advantech |
|---|
