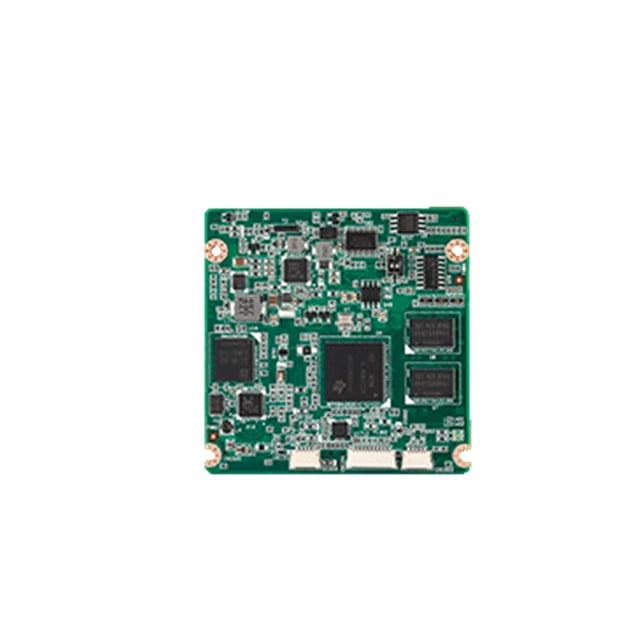

Advantech CIRCUIT BOARD, ROM-3310 TI AM3352 Cortex A8 1Ghz (ROM-3310CS-MCA1E)
Deskripsi
| Category | Attribute | Value |
| Display | Graphic Engine | N/A |
| Display | H/W Video Codec | N/A |
| Display | HDMI | N/A |
| Display | LVDS | N/A |
| Display | Parallel RGB | 24bit TTL |
| Form Factor | Form Factor | RTX2.0 |
| I/O | Audio | Line-in, Line-out , Mic-in |
| I/O | Camera Input | N/A |
| I/O | CAN | 2 x CAN 2.0 A and B |
| I/O | GPIO | 10 GPIO Ports |
| I/O | I2C Bus | 1 I2C |
| I/O | PCIe | N/A |
| I/O | SATA | N/A |
| I/O | SDIO | 1x SD slot |
| I/O | Serial port | 1 x RS485 and 4 x RS232 |
| I/O | SPDIF | N/A |
| I/O | SPI Bus | 1 |
| I/O | USB | 1 USB 2.0, 1 USB2.0 OTG |
| Memory | Capacity | On-board DDR3 512 MB |
| Memory | Flash | 4 GB eMMC for O.S. and 4 MB NOR Flash for Advantech boot loader |
| Memory | Technology | DDR3 800 MHz |
| Processor | CPU | TI Sitara Cortex A8 AM3352 1Ghz |
| Operating System | Linux | Linux Kernel V3.2.0 |
| Environment | Operational Temperature | 0 ~ 60°C |
| Power | Power Supply Voltage | 5~24V |
| Ethernet | Chipset | TI AM3352 Integrated RGMII |
| Watchdog Timer | WatchDog Timer | MSP430G2202 (time out:1~6553s,default 60s/power on/off 1s) |
| Certification | EMC | CE, FCC Class B |
| Physical | Dimension (mm) | 68×68 mm |
Informasi Tambahan
| Brand |
Advantech |
|---|
