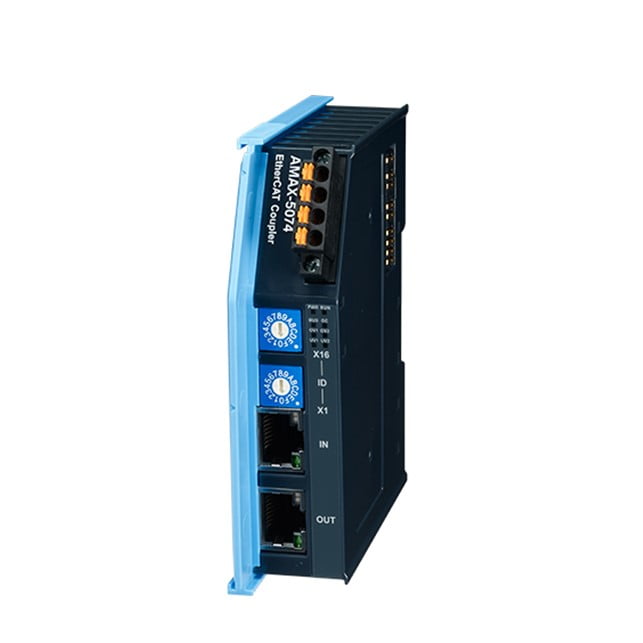

Advantech EtherCAT Slice IO Coupler with ID Switch

Deskripsi

Category	Attribute	Value
General	Diagnosis Function	Over/under voltage for input 1&2 Over current output on bus
General	Max Current on Bus	2 A
General	Rated Voltage	24 VDC (±20%)
Hardware	Certification	CE, FCC class A
Hardware	Dual Power Input	Supported
Hardware	LED Indicators	PWR, RUN / ERROR, Power Diagnosis LED
Hardware	Power Consumption	2.5 W @ 24 VDC
Hardware	Watchdog Timer	1.6 s
Environment	Isolation Voltage	2,000 VDC
Environment	Operating Temperature	-25~60 °C (-14~140 °F)
Environment	Relative Humidity	5~95% RH (non-condensing)
Environment	Storage Temperature	-40~85 °C (-40~185 °F)
EtherCAT	Cycle Time	100 μs
Mechanical	Enclosure	PC + ABS
Mechanical	Mounting	DIN-rail
Mechanical	Weight (Net)	91 g
EtherCAT Coupler	BUS Interface	2 x RJ45 (1 x Input, 1 x Output)
EtherCAT Coupler	Cable	Ethernet/ EtherCAT cable (min. Cat. 5), shielded
EtherCAT Coupler	Distance between Stations	Max. 100 m (100BASETX)
EtherCAT Coupler	Function	Coupling EtherCAT IO modules to 100BASETX EtherCAT network
