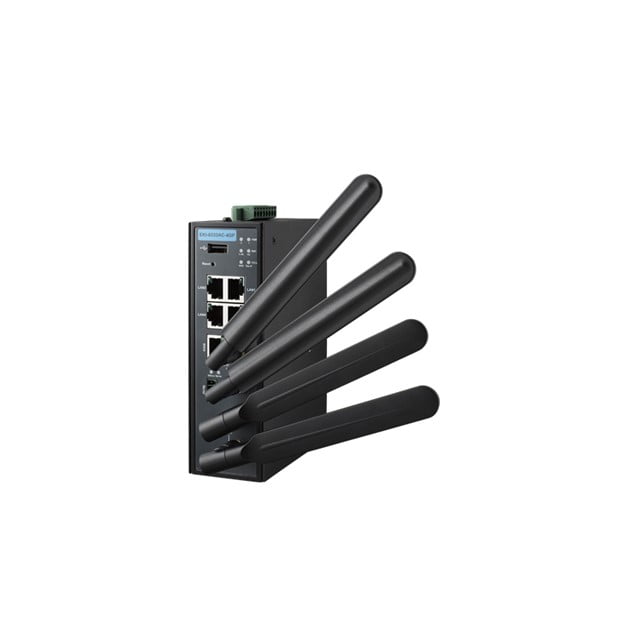

Advantech Ind. 802.11 a/b/g/n/ac Wi-Fi AP with PoE PSE (EKI-6333AC-4GP-A)
- Supports 802.11ac MIMO 2T2R
- WLAN transmission rate up to 867 Mbps
- Supports secure access with WEP, 802.1x, WPA/WPA2-Personal, WPA/WPA2-Enterprise
- Provides Web-based configuration
- Supports dual bands 2.4G/5G concurrent
Deskripsi
| Category | Attribute | Value |
| Power | Power Consumption | 20W |
| Power | Power Input (DC) | 24 ~ 56 VDC |
| Software | Configuration | Web browser |
| Software | Protocols | ARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCP Server, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ, PPPoE, VPN Passthrough, Telnet Server, SSH Server, FTP Server, QoS |
| Environment | Relative Humidity | 10~95% RH |
| Environment | Temperature (Operating Range) | -30 ~ 70°C (-22 ~ 158°F) |
| Environment | Temperature (Storage Range) | -40 ~ 80°C (-40 ~ 176°F) |
| Mechanism | Dimensions (W x H x D) | – |
| Mechanism | LED Indicator | System: Power, Status WLAN: Quality, Link/Active LAN: Link/Active |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Weight | 1.5 kg |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 5 |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100/1000 Mbps |
| Wireless Communication | Wi-Fi 2.4 GHz | Yes |
| Wireless Communication | Wi-Fi 5 GHz | Yes |
| Wireless Communication | Wi-Fi Antenna Connector Type | Reverse SMA |
| Wireless Communication | Wi-Fi Antenna Number | 4 |
| Wireless Communication | Wi-Fi Free Space Range | Open space 100 m |
| Wireless Communication | Wi-Fi Network Mode | Infrastructure |
| Wireless Communication | Wi-Fi Operation Mode | Access Point/ Repeater/ Client mode |
| Wireless Communication | Wi-Fi RF Capability | 2T2R |
| Wireless Communication | Wi-Fi Standard | IEEE 802.11 a/b/g/n/ac |
| Wireless Communication | Wi-Fi Transmission Speed | Up to 1167 Mbps |
| Wireless Communication | Wireless Security | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise |
| Certification | EMC | CE, EN55032/24 |
| Warranty | Warranty Period | 2 years |
