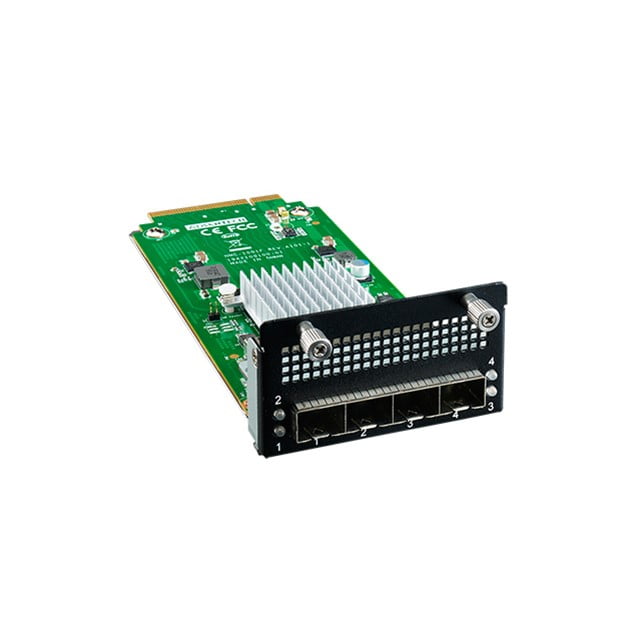

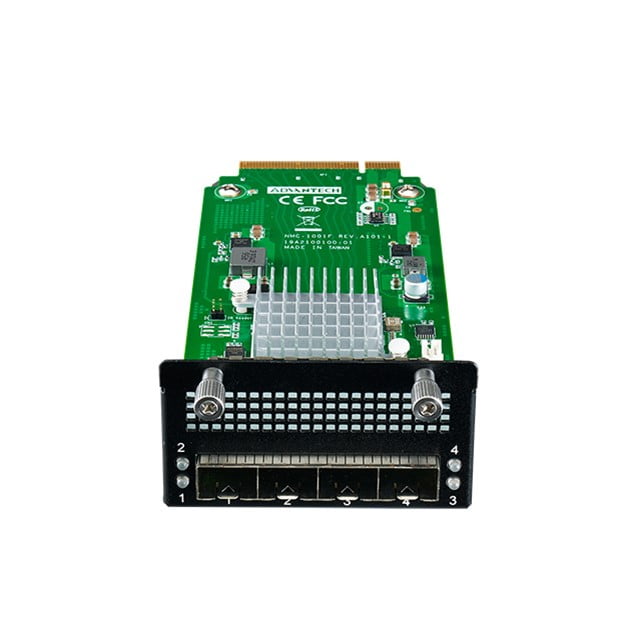

Advantech Network Appliance,4ports 10G SFP+ XL710 screw (NMC-1001-04FSA1)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| Interface | Interface | PCI-E 3.0 x8 |
| Controller | Controller | 1x Intel® XL710-BM1 |
| Compliance | Compliance | CE/FCC |
| Speed | Speed | 10GbE |
| OS Support | Windows® Server 2012 R2, 2012, 2008 R2 X86-64 Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 FreeBSD 9 and 10 IA-32, X86-64, and IA-64 UEFI 2.1 and 2.3 X86-64 and I-64 VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64 | |
| Port | Port | 4x SPF+ Port |
| LED Definition | LED Definition | Link/Act LED (Right/Left): Link:Green on, Active:Green Blinking; Bypass LED(Middle):LAN Bypass:Amber on, Disconnect: Amber blinking, Connect: N/A |
| Advanced Software Features | Advanced LAN Bypass | N/A |
| Advanced Software Features | Advanced Software Features | Teaming support IEEE 802.3ad IEEE 802.1Q VLANs IEEE 802.3 2005 flow control support Interrupt moderation |
| Operating Conditions | Operating Conditions | Operation: 0°C ~ 40°C Storage: -20°C ~ 67°C |
| Power Voltage & consumption | Power Voltage & consumption | +12V ± 10% 15W |
| Dimension (mm) | Dimension (mm) | (W x H x D)=74.6 x 42.4 x 174.7mm |
