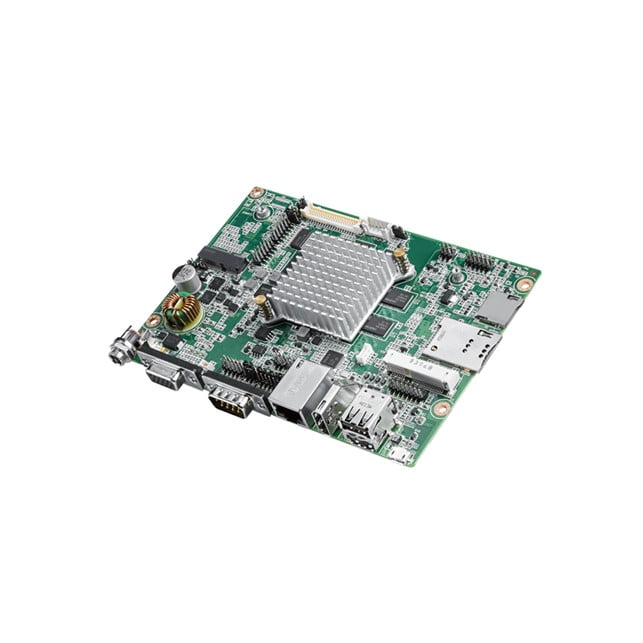

Jual Advantech Rockchip ARM Cortex-A17 RK3288 3.5" SBC Quad core 1.6GHz/2GB DDR (RSB-4680CQ-XNA1E)

Advantech Rockchip ARM Cortex-A17 RK3288 3.5″ SBC Quad core 1.6GHz/2GB DDR (RSB-4680CQ-XNA1E)

Category	Attribute	Value
Display	Graphic Engine	OpenGL ES 1.1/2.0/3.0, OpenCL 1.1, DirectX 11
Display	H/W Video Codec	Decoder:HEVC/H.265 decoder, 4k@60FPS,MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, VP8, MVC
Display	HDMI	Support HDMI 2.0，up to 3840 x 2160 @ 60Hz
Display	LVDS	18/24/30-bit dual channel LVDS up to 1920 x 1080 @ 60Hz
Display	VGA	Up to 1920 x 1200 at 60 Hz
Form Factor	Form Factor	3.5″ SBC
I/O	Audio	Line out, Mic in, Speaker out
I/O	GPIO	8 x GPIO via pin header with 3.3V TTL level
I/O	I2C Bus	1 I2C pin header
I/O	PCIe	Mini PCIE by USB Signal
I/O	SDIO	1 Micro SD Slot
I/O	Serial port	1 x 4-wire RS-232/485; 1 x 2-wire RS-232/Debug port, pin header selected by jumper; 4 x 4-wire RS-232
I/O	SPI Bus	1 SPI pin header
I/O	USB	1 x USB OTG, 2 x USB Type A, and 3 x USB pin headers
Memory	Capacity	On board DDR3L 2GB
Memory	Flash	8 GB EMMC for O.S. and Advantech boot loader.4MB SPI NOR Flash.
Memory	Technology	DDR3L 1333 MHz
Processor	CPU	Rockchip ARM Cortex A17 RK3288 Quad Core, up to 1.6GHz
Operating System	Linux	Android and Linux
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F)
Power	Power Supply Voltage	12 VDC
Ethernet	Chipset	TI DP83867
Watchdog Timer	WatchDog Timer	Yes
Certification	EMC	CE/FCC Class B
Physical	Dimension (mm)	146 x 102 mm
RTC	RTC	Yes
