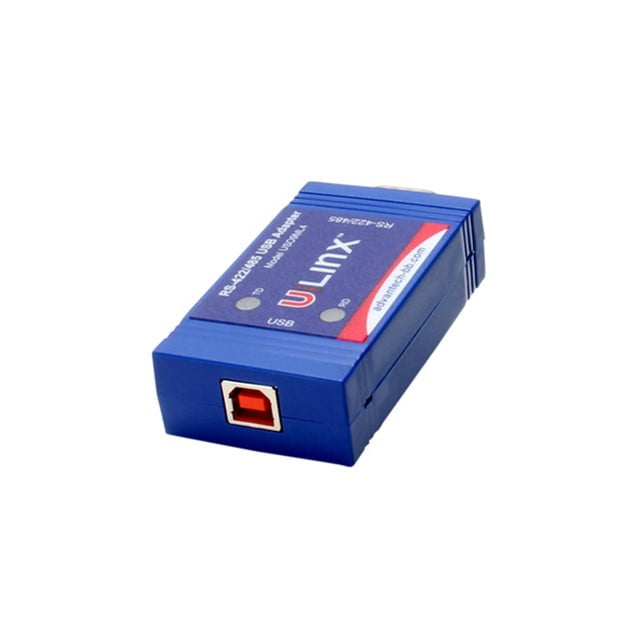

Advantech ULI-341DC – USB to RS-422/485 (DB9 Male) Isolated Converter (BB-USO9ML4)
Rp3.431.232
- 2 kV Isolation
- ESD Protection – 4 kV Contact, 8 kV Air
- Compact In-Line Case
- USB 2.0 Full Speed Compatible (12 Mbps)
- USB Bus Powered
Deskripsi
| Category | Attribute | Value |
| General | Isolation | 2kV |
| Mounting | Inline | |
| Power | Bus Powered | |
| Serial Connector | Terminal Block | |
| Serial Port Count | 1 | |
| Serial Type | RS-422, RS-485 | |
| Technology | USB | |
| Temperature | 0 to 70C | |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| Protection | Isolation | 2,000 VDC |
| Serial Communication | Maximum Serial Transmission Speed | 460.8 Kbps |
| Serial Port Connector Type | DB9 male | |
| Serial Port Number | 1 | |
| Serial Standard | RS-422 / RS-485 | |
| Environment | Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
| Accessory General | Mounting | Inline |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Maximum Transfer Rate | Full-Speed (12 Mbps) | |
| Port Number | 1 | |
| Standard | USB 2.0 |
Informasi Tambahan
| Brand |
Advantech |
|---|
