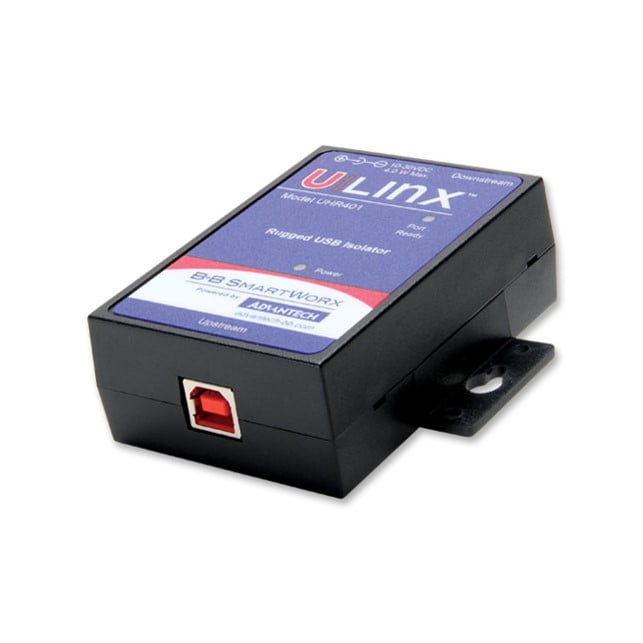

Advantech ULI-421C – USB 2.0 Isolator, 4 kV, High Retention Connectors. 1 Ports, Panel Mount Case (BB-UHR401)
Rp4.773.888
- 4 kV Isolation
- High Retention USB Connectors
- ESD Protection – 15 kV Air
- Heavy Duty Case – Panel Mount or optional DIN rail adaptor clips
- USB 2.0 – Full Speed
Deskripsi
| Category | Attribute | Value |
| General | Isolation | 4kV |
| General | Mounting | Panel |
| General | Power | 10-30VDC |
| General | Technology | USB |
| General | Temperature | 0 to 50C |
| General | USB Port Count | 1 |
| General | USB Speed | 12Mbps |
| Power | Power Input (DC) | 10 ~ 30 VDC |
| Protection | ESD Protection | 8 kV (Contact) ; 15 kV (Air) |
| Protection | Isolation | 4,000 VDC |
| Interface | Port Number | 1 |
| Environment | Temperature (Operating Range) | 0 ~ 50°C (32 ~ 122°F) |
| Accessory General | Mounting | Inline |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Upstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Upstream USB Port | Port Number | 1 |
| Upstream USB Port | Standard | USB 2.0 |
| Downstream USB Port | Connector Type | Type A (Female) High Retention |
| Downstream USB Port | Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Downstream USB Port | Port Number | 1 |
| Downstream USB Port | Standard | USB 2.0 |
| Downstream USB Port | Supply Current | 500mA for each downstream port |
Informasi Tambahan
| Brand |
Advantech |
|---|
