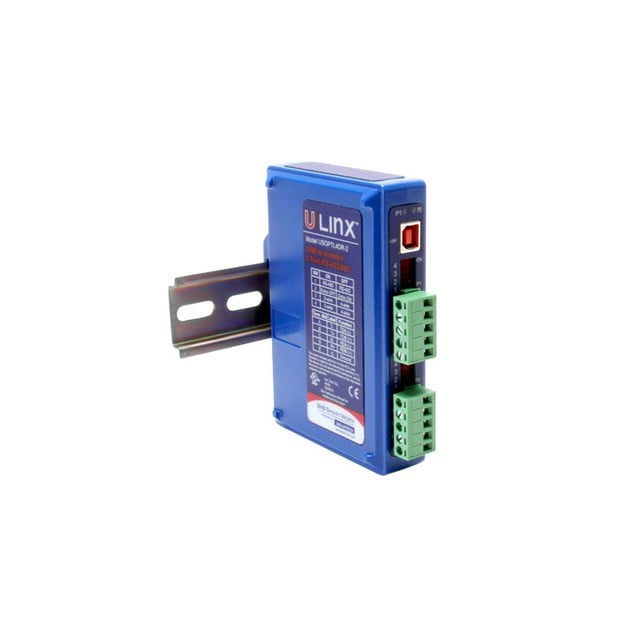

Advantech USB to 2 Port RS422/485 (Terminal Block) Isolated Converter (BB-USOPTL4DR-2)
Rp5.594.400
- 3000 Volts optical isolation
- 15 KV ESD protection
- USB bus powered
- RS-422/485 data rates up to 921.6 Kbps
- High retention USB connector
- Removable terminal blocks
Deskripsi
| Category | Attribute | Value |
| General | Isolation | 3kV |
| Mounting | DIN | |
| Power | Bus Powered | |
| Serial Connector | Terminal Block | |
| Serial Port Count | 2 | |
| Serial Type | RS-422, RS-485 | |
| Technology | USB | |
| Temperature | 0 to 70C | |
| Power | Power Input (USB) | Port-Powered from USB host (5 VDC) |
| Protection | Isolation | 3,000 VDC |
| Serial Communication | Maximum Serial Transmission Speed | 921.6 Kbps |
| Serial Port Connector Type | Terminal block | |
| Serial Port Number | 2 | |
| Serial Standard | RS-422 / RS-485 | |
| Environment | Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
| Accessory General | Mounting | DIN |
| Upstream USB Port | Connector Type | Type B (Female) High Retention |
| Maximum Transfer Rate | Full-Speed (12 Mbps) | |
| Port Number | 1 | |
| Standard | USB 2.0 |
Informasi Tambahan
| Brand |
Advantech |
|---|
