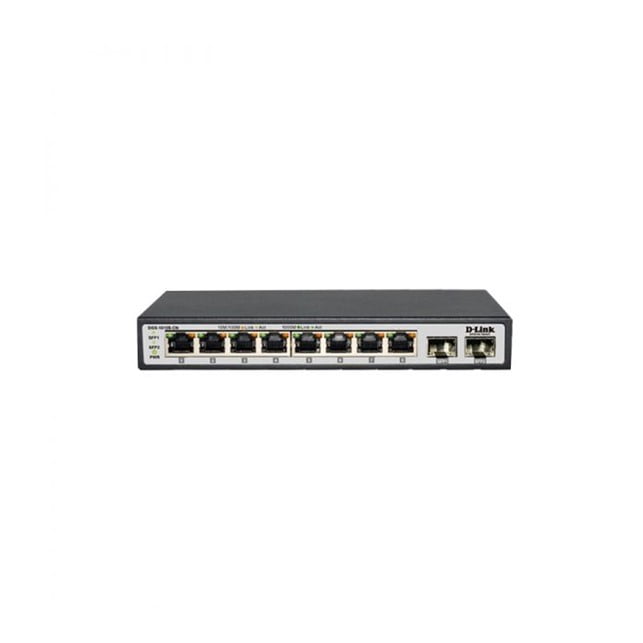

D-Link 10-port Gigabit Unmanaged Switch DGS-1010S-CN
Rp2.264.400
Deskripsi
| Specification | |
| network port | • 8 10/100/1000 Mbps RJ – 45 ports + 2 100/1000 Mbps SFP fiber ports |
| web standard | • IEEE 802.3 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX ; IEEE 802.3ab 1000BASE-T ; IEEE 802.3z 1000 BASE-X
• IEEE 802.3x flow control; ANSI/IEEE 802.3 NWay adaptive |
| exchange capacity | • 20 Gbps |
| transfer method | • Store and forward |
| MAC address table | • 4K |
| data cache | • 1.5 Mb |
| Maximum packet forwarding rate | • 15 Mpps |
| data transfer rate | • Ethernet • Fast Ethernet • Gigabit Ethernet
• 10 Mbps ( half duplex ) • 100 Mbps ( half duplex ) • 2000 Mbps ( full duplex ) • 20 Mbps ( full duplex ) • 200 Mbps ( full duplex ) |
| network cable | • 10BASE-T: • 100BASE-TX • 1000BASE-T
• UTP Cat 3/4/5/5e (100 m ) • UTP Cat 5/5e (100 m ) • UTP Cat 5/5e (100 m ) • EIA/TIA-586 100-ohm STP • EIA/TIA-568 100-ohm STP • EIA/TIA-568 100-ohm STP |
| LED indicator | • Power, connection, activity, rate |
| Equipment size | • 19 0 x 100 x 28 mm |
| input power | • 12 V /1A , external power supply |
| Maximum power consumption | • 6W _ |
| ambient temperature | • Operating : 0 – 45 ˚C • Storage : -40 – 70 ˚C |
| environment humidity | • Working : 1 0% – 90% non-condensing • Storage : 5 % – 90% non-condensing |
