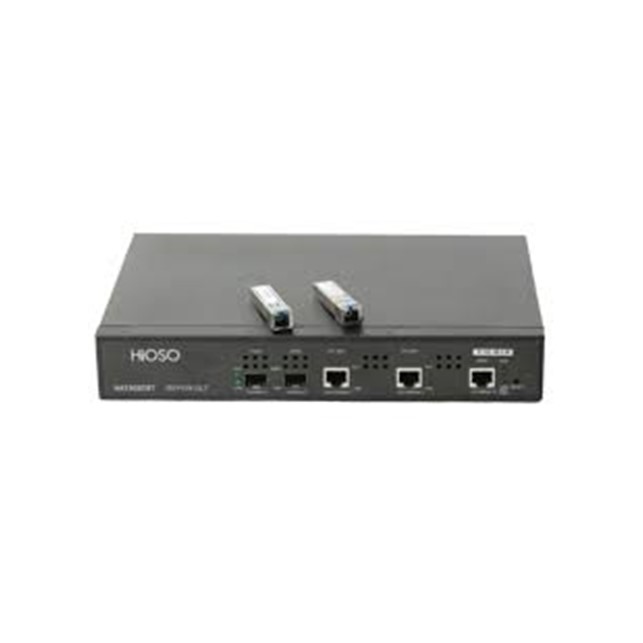

HIOSO EPON OLT HA7302CST Include 2Pcs SFP EPON PX20+++(+8dB)
Rp4.779.216
Deskripsi
Parameter Specifications
Operating wavelength : 1310(RX)/1490(TX)
Optical power : +0 ~ +7dBm
Receiving sensitivity : -27dBm
Max distance : 20km
Max splitter ratio : 1:64
Capacity : 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC : 8K
Uplink port : 2 1000M Ethernet RJ45 ports
PON port : 2 SFP fiber ports
Control port : RJ45 console port, to debug the device
MTBF :100,000 hours
EPON traits :
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)
