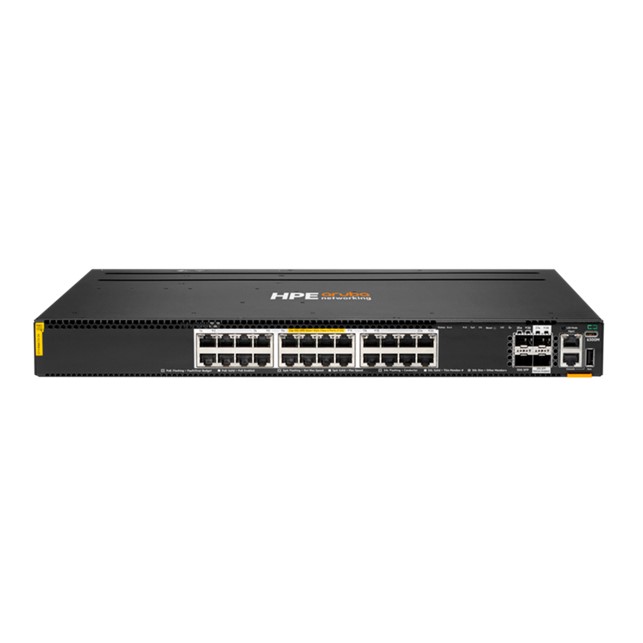

HPE Aruba Networking CX 6300M 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G 2p 25G Switch [ R8S89A ]

Specification

Power consumptionWith JL086A PSU:
Hibernation (0 rpm fan): 37W
Idle: 90W
100% Traffic Rate: 143W
With JL087A PSU:
Hibernation (0 rpm fan):41W
Idle: 90W
100% Traffic Rate: 140W
With JL670A PSU:
Hibernation (0 rpm fan): 35W
Idle: 101W
100% Traffic Rate: 152W

Input voltageJL670A PSU: 110V-120V/208V-240V
JL086A PSU: 100V-240V
JL087A PSU: 110V-240V

Ports24-port Smart Rate 100M**/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port (MACSEC)

2x 10G/25G/50G* SFP ports
2x 10G/25G SFP ports (MACSEC)

Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)

1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port

Notes:
*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.
**100M use on Smart Rate ports is limited to full‑duplex only. For 100M half‑duplex support, use 1G ports on other models.

Latency1Gbps: 4.24μSec,
10Gbps: 1.50μSec,
25Gbps: 2.91μSec,
50Gbps1: 3.49μSec

Routing/switching capacity880 Gbps

Switching capacity780 Gbps

Stacking capabilitiesUp to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches

Throughput580 Mpps

Memory and processorQuad Core Arm Cortex™ A72 @ 1.8GHz,
8 GB DDR4, 32 GB eMMC

16 MB Shared Packet Buffer Memory

Power supply name2 field-replaceable, hot-swappable power supply slots
1 minimum power supply required (ordered separately)
Supported PSUs
JL086A
JL087A
JL670A
JL758A
Max PoE Power: 2880W

PoE capabilityMax PoE Power: 2880W

Management featuresHPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

WarrantyLimited lifetime warranty.

Detailed product descriptionCX 6300M 24p HPE Smart Rate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
2x 10G/25G/50G SFP ports
2x 10G/25G SFP ports (MACSEC)
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
1x USB-C Console Port
1x RJ Console Port
1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle to be used with CX Mobile App

Weight6.71 kg (14.8 lbs)

Dimensions4.4 x 44.2 x 38.5 cm (1.73 x 17.4 x 15.2 in)
