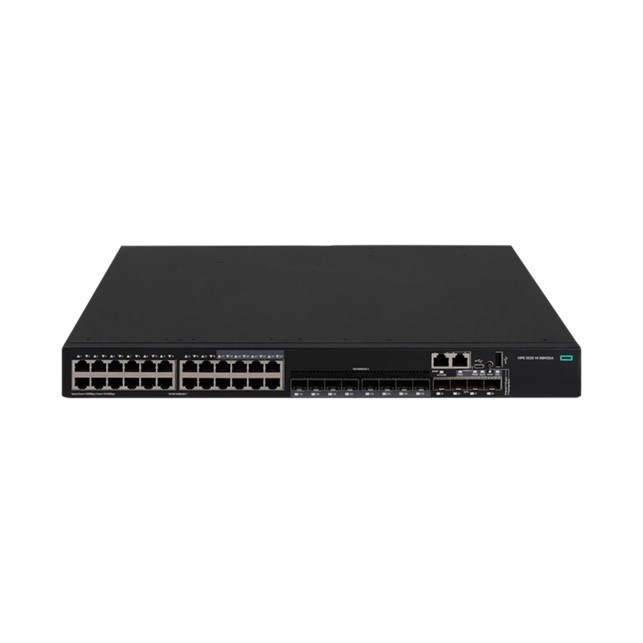

HPE Networking Comware Switch 24 G 4SFP+ 24P 10/100/1000BASE-T 4p SFP+ Exp 2 PS Slot 5520HI (R8M25A)
Rp94.767.138
The HPE FlexNetwork 5520 HI Switch series provides medium and large
enterprise networks with increased processing power, Larger MAC size tables,
and Longest Prefix Match (LPM) to improve network performance and
scalability by enabling multipathing.
Non-blocking architecture delivers up to 336 Gbps of wire-speed switching and
up to 180 Mpps throughput.
Supports Equal-Cost Multipath that enables multiple equal-cost links in a routing
environment to increase link redundancy and scale bandwidth.
Deskripsi
| Product Number | R8M25A |
| Differentiator | Layer 3 switch with 16 10/100/1000 BASE-T ports, 8 combo SFP or RJ45 ports, 4 1/10GbE SFP+ and 1 expansion module slots Supports Intelligent Resilient Framework (IRF) virtual fabric and dual hot pluggable power supplies |
| Ports | (16) 10/100/1000BASE-T RJ-45 ports (8) dual-personality ports – 10/100/1000BASE-T RJ-45 or
100/1000BASE-X Combo Ports Duplex: Ports 1-24 support 10BASE-T/100BASE-TX, 1000BASE-T (full only), (4) SFP+ 1/10GbE ports, (1) port expansion module slot. |
| Memory and processor | 2 GB SDRAM
Packet buffer size: 4 MB, 512 MB flash |
| Latency | 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs |
| Throughput | up to 180 Mpps |
| Routing/switching capacity | 288 Gbps |
| PoE capability | NA |
| Stacking capabilities | IRF 9 switches |
| Management features | IMC – Intelligent Management Center
Command-line interface SNMP manager |
| Input voltage | 90 to – 264 VAC and -36 to -72 VDC |
| Power consumption | 150W (maximum) |
| Heat dissipation | Ranges from 81 BTU/hr to 324BTU/hr depending on power supply configuration |
| Product dimensions (metric) | 44 X 36 X 4.36 cm |
| Weight | ≤6.7kg |
