DESCRIPTION

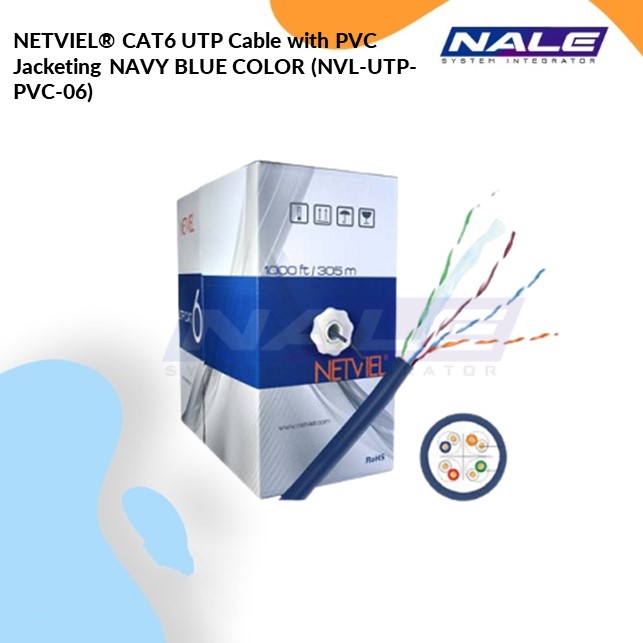

- Netviel CAT6 UTP Cable with PVC Jacketing NAVY BLUE COLOR
Description – Electrical Performance(At 250MHz)
- 0-250.0MHz Impendance(ohms) – 100±15
- Impendance delay screw(ns/100m) – <45
- Pair to Ground Capacitance Unbalance (PF/100m) – 330Max
- Conductor DC resistance 20%(ohms/km) – <73.2
- Resistance Unbalance(%) – 5
- Test object – jacket
- Test Material – PVC
- Before Tensile strength(Mpa) – ≥13.8
- Aging Elongation (%) – ≥100
- Aging condition(C x hrs) – 100×240
- After Tensile strength(Mpa) – ≥85
- Aging Elongation(%) – ≥50
- Cold bend(-20±2°Cx24 hrs) – No crack
CABLE DATA
- Conductor – solid bare copper
- AWG – 23
- Conductor Dia(mm) ±0.01-0.02mm – 0.57
- Insulation – PE
- Average thickness(±0.03mm) – 0.22
- Min point thickness: – 0.18
- Insulation Dia(±0.03mm) – 1.02
- Twisting lay length(mm) – 30 undemeath
- Cabling lay length (mm) – 200 undemeath
- Jacket – PVC
- Average thickness – 0.5
- Min point thickness – 0.43
- Outer Diameter (± 1.0mm) – 6.0
- Outer Jacket Diameter – 8.3 mm ± 0.2 mm
- Rip cord – YES
- Weight Nom(kg/km) – 42
- Core color: – Blue-white/blue | Orange-white/orange | Green-white/orange | Brown-white/brown
- Sheath Color – PVC: Navy Blue
APPLICATIONS
- T1&T1 fractional,ISDN
- Basic&primary Rate.4/16 Mbps Token
- Ring(IEEE802.5).10BAST-T(IEEE 802.3),100Mbpa
- TP-PMD.52/155Mbps
- ATM(ATM Forum), 100BAST-T4(fast Ethemet),
- 100 VG-AnyLAN
- (IEEE802.12),100 BAST-T(Fast Ethemet),1 Gbps
- Ethemet(IEEE 802.3)
