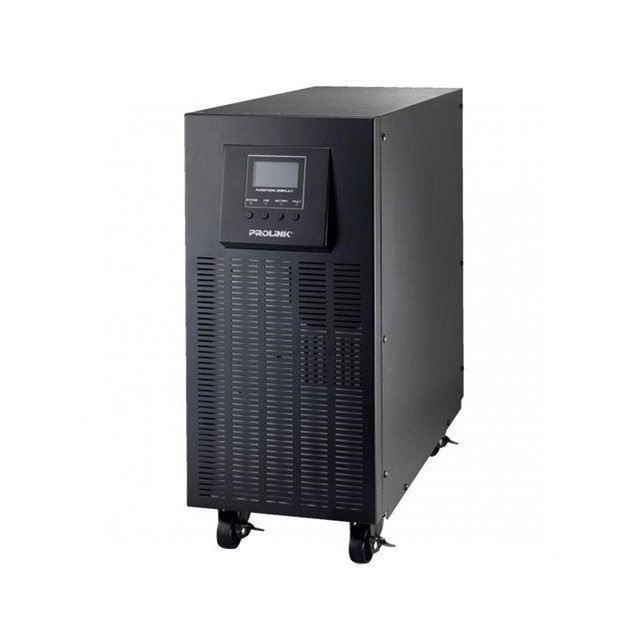

PROLINK UPS Pro810QL 10KVA 10KW (PRO810QL)

Spesifikasi

INPUT

• Nominal Voltage: 208/220/230/240 VAC
• Voltage Range: 110-300VAC ± 3% at 50% load ; 176~300VAC ± 3% at 100% load
• Frequency: 46~54 Hz or 56~64
• Phase: Single phase with ground Power Factor: ≧ 0.99 @ full load
• THDi: <4% @100% Load ; <6% @50% Load

OUTPUT

• Output Voltage: 208/220/230/240 VAC
• AC Voltage Regulation (Batt. Mode): ± 1% Frequency: 46~54 Hz or 56~64 Hz
• Current Crest Ratio: 3:1 (max.)
• Harmonic Distortion: ≦1 % THD (Linear Load) ; ≦ 4 %
• THD (Non-linear Load) Waveform: Pure Sinewave
• Battery: 12 V / 9 Ah Recharge
• Time: 9 hours recover to 90% capacity
• Charging Current: 1.0 A Voltage: 273 VDC ± 1%
• Noise Level: Less than 58dB @1Meter
• Smart RS-232/USB: Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC

Datasheet-PRO800QS_QL.pdf
