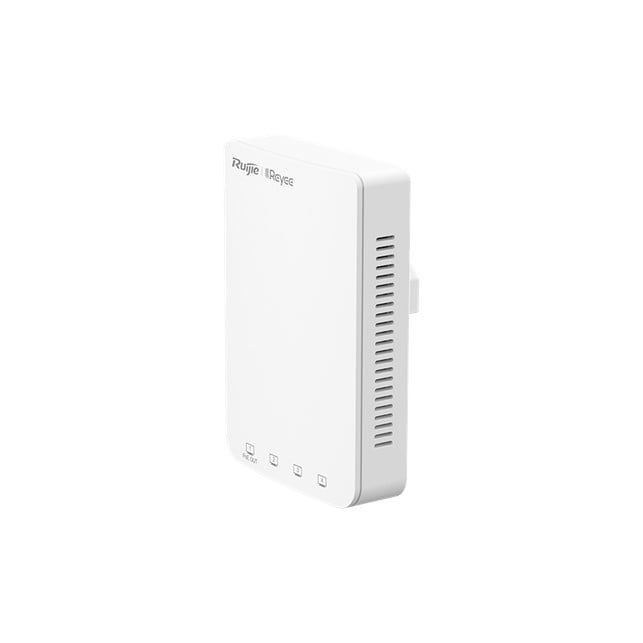

Reyee RG-RAP1200(P) DUAL-BAND GIGABIT WALL PLATE ACCESS POINT
Rp1.854.810
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz
802.11a/n/ac: 5G: 5.150～5.350GHz, 5.725～5.850GHz |
| Antenna | PF antenna（2.4G: 2dBi, 5G: 2dBi） |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | 2.4G: up to 400Mbps
5G: up to 867Mbps Access rate per AP: 1.267Gbps |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Receive Sensitivity | 11b: -91dBm(1Mbps), -88dBm(5Mbps), -85dBm(11Mbps)
11a/g: -89dBm（6Mbps）, -80dBm（24Mbps）, -76dBm（36Mbps）, -71dBm（54Mbps） 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 11ac HT20: -83dBm（MCS0）, -57dBm（MCS9） 11ac HT40: -79dBm（MCS0）, -57dBm（MCS9） 11ac HT80: -76dBm（MCS0）, -51dBm（MCS9） |
| Maximum Transmit Power | 5.725～5.850GHz: ≤18dBm (EIRP)
5.150～5.350GHz: ≤18dBm (EIRP) 2.4～2.4835GHz: ≤18dBm (EIRP) |
| Adjustable Power | 1dBm |
| Dimensions | 126mm×86mm×50mm |
| Weight | 0.24kg |
| Service Ports | Front: 4 10/100/1000Base-T Ethernet ports
LAN1 port supports IEEE.802.3af PoE OUT Rear: 1 10/100/1000Base-T Ethernet port |
| Management Port | N/A |
| LED Indicator | 1 LED indicator |
| Power Supply | 1dBm |
| Power Consumption | ≤8W |
| Environment |
Operating temperature: 0°C～40°C Storage temperature: -40°C～70°C Operating humidity: 0％～100％（non-condensing） Storage humidity: 0％～100％（non-condensing） |
| Installation | Wall plate installation |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254，EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | SRRC certification, EN300 328, EN301 893 |
| MTBF | >250000H |
| Software Features | |
| Operating Mode | AP mode and routing mode |
| WLAN |
Maximum number of clients: 110 Recommended number of clients: 80 Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security |
Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment
Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
