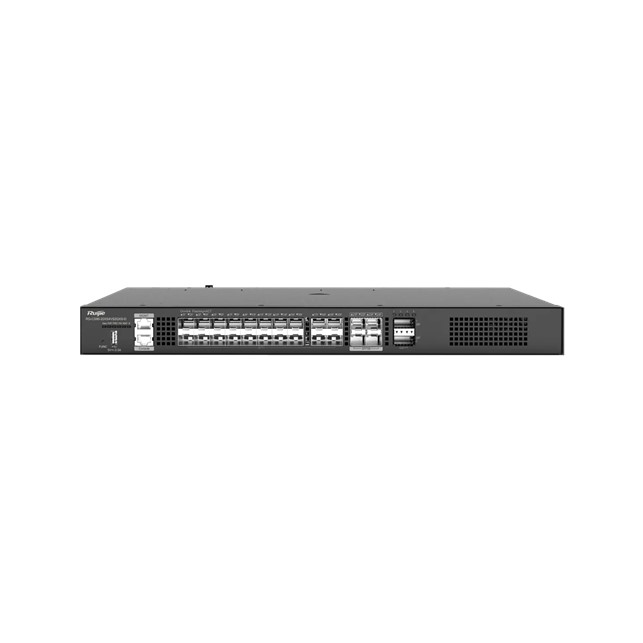

Ruijie 20-Port 10/2.5GE(SFP+), Layer 3 Ruijie Core/Aggregation Switch with Cloud Management (RG-CS86-20XS4VS2QXS-D)
Rp88.538.040
Deskripsi
Spesifikasi
| Interface Specifications | |
| Fixed Ports | 20 x 1GE/2.5GE/10GE SFP+ ports, 4 x 10GE/25GE SFP28 ports, 2 x 40GE QSFP+ ports. One switch provides a maximum of 32 x 10GE ports, 2 x modular power slots, and 2 x modular fan slots. |
| Fan module | Dual pluggable modular fans, with front-to-rear ventilation channels
Fan speed regulating and alarm function |
| Power module | 2 x replaceable hot-swappable power supply slots |
| Fixed management port | 1 x MGMT port, 1 x console port, and 1 x USB port |
| System Specifications | |
| Packet forwarding rate | 570 Mpps |
| Switching capacity | 760 Gbps |
| MAC address table size | 32,768 |
| ARP table size | 16,000 |
| Number of IPv4 unicast routes | 16,000 |
| Number of IPv4 multicast routes | 4,000 |
| Number of IPv6 unicast routes | 16,000 |
| Number of IPv6 multicast routes | 2,000 |
| Number of ACEs | In: 2,500
Out: 1,000 |
| Number of VSU members | 2 |
| Dimensions and Weight | |
| Dimensions (W x D x H) | 440 x 330 x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.), 1 RU |
| Weight of the empty chassis | 4.6 kg (10.14 lbs.) |
| CPU and Storage | |
| CPU | Dual-core CPU, 1.25 GHz |
| Flash memory | 1 GB |
| BootROM | 16 MB |
| SDRAM | 1 GB |
| Data packet buffer | 4 MB |
| Power and Consumption | |
| Power supply | Supported power module type: RG-PA150I-F
AC input: Rated voltage range: 100–240 V AC; 50/60 Hz Maximum voltage range: 90–264 V AC; 47/63 Hz Rated input current: 3 A
HVDC input: Rated voltage: 240 V DC Maximum voltage range: 192–288 V AC Rated current per circuit: 3 A |
| Maximum power consumption | < 85 W |
| Maximum output power | RG-PA150I-F: 150 W |
| Rated input voltage | RG-PA150I-F:
AC input: Rated voltage range: 100–240 V AC; 50/60 Hz
HVDC input: Rated voltage: 240 V DC |
| Maximum input voltage | RG-PA150I-F:
AC input: Maximum voltage range: 90–264 V AC; 47/63 Hz
HVDC input: Maximum voltage range: 192–288 V DC |
| Environment and Reliability | |
| Primary airflow | Front-to-rear airflow |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Interface surge protection | Power port: 6 kV/6 kV
Telecom port: 10 kV (MGMT port: 4 kV) |
| Temperature alarm | Supported |
