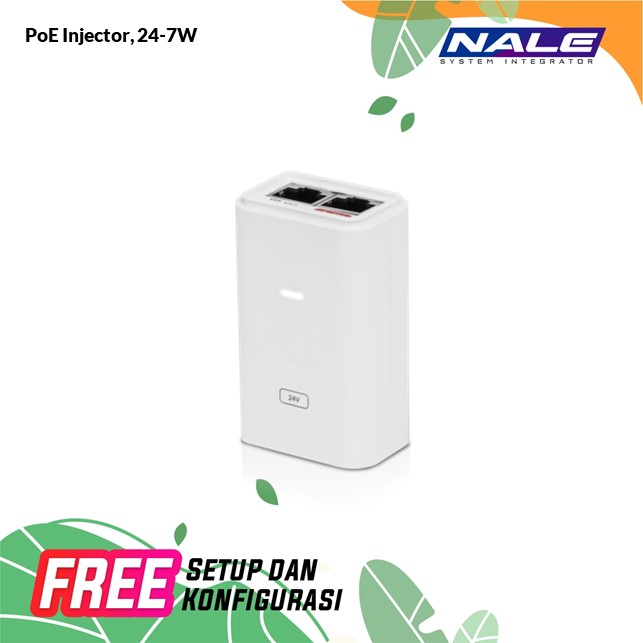

Deskripsi Ubiquiti PoE Injector, 24-7W
Ubiquiti PoE Adapters menyediakan berbagai fitur untuk membantu melindungi perangkat PoE Anda:
UniFi Redundant Power System
Rp8.305.020
Ubiquiti PoE Injector, 24VDC, 12W
Rp187.368
Ubiquiti PoE Injector, 24-7W
Rp124.875
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Deskripsi
Ubiquiti PoE Injector, 24-7W
Spesifikasi singkat
| Output Voltage | 24VDC @ 0.3A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.3A @ 120VAC, 0.2A @240VAC |
| Inrush Current | <40A Peak @ 120VAC, <70A Peak @ 230VAC |
| Efficiency | 0.8 |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Operating Humidity | 35 to 95% Non-Condensing |

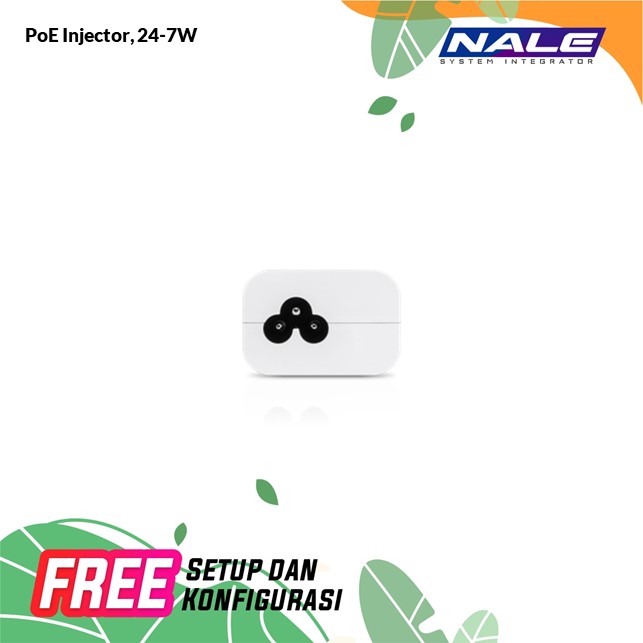

| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pf data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
